elster
A Reliable Partner for over 750 Years
It was as early as 1848 when Elster began developing technologies
for gas metering and regulation. Innovation, quality and safety have
formed the basis of their success over the years. And even today,
none of that has changed.
It all started with the production of gas lamps and the first mechanical
devices for measuring the consumption of the gas in street lights.
Since then, product development has made rapid progress.
Ultrasonic metering, electronic volume correction as well as modern
data acquisition and evaluation systems are every bit as much a part of
the supply program as the traditional metering and regulating devices.
Nowadays, ELSTER-AMCO operates worldwide together with national
and international associates, a globalisation process which mirrors the
further development of the products. This is one of the most important
company goals. Joint research and development activities guarantee
technological innovations which each of the partner organisations can
then exploit to the benefit of their own specific customers.
ELSTER-AMCO offers a variety of flexible and sophisticated system
solutions which are in line with the requirements of today's markets
and the specific needs of our customers.
For further information on product ranges produced by our affiliated
companies AMCO, IGA, ELSTER-JEAVONS, KROMSCHROEDER or others,
please refer directly to the companies or the Internet homepages
(p.19 —20).
High quality products, efficient solutions and satisfied customers are,
after all, the best conditions for a successful future.
elster amco
worldwide
The ELSTER-AMCO group is made up of
companies from a variety of origins and
nationalities. The independent production
and sales organisations contribute to the
strength and competence of the group,
which, most importantly, has one common
goal: the development, production and
marketing of safe, high -quality and inno-
vative products, systems and services for
gas supply and utilization.
The Companies of the ELSTER-AMCO Group:
American Meter Company, USA
AMCO Automated Systems, USA
Canadian Meter Co. Inc., Canada
Chongqing Oianwei, China
Cogegaz S.A., Belgium
Compteurs Magnol S.A., France
Elster GmbH, Germany
Elster Gastechnic GmbH, Austria
Elkro Gas s.p.a., Italy
ELSTER-AMCO de Mexico, Mexico
ELSTER-AMCO de Sudamerica S.A., Argentina
Elster-Jeavons Engineering Ltd., UK
Elster Rus Gas Pribor, Russia
Elsel Gaz Armaturleri Sanayi Ve Tic. S.A., Turkey
B.V. Ermaf, The Netherlands
Flow Comp Systemtechnik GmbH, Germany
Gaselectronica GmbH, Russia
GWF Gas- und Wassermesserfabrik AG, Switzerland
IGA Ltd., UK
IGA A/S, Denmark
IGA B.V., The Netherlands
Intergaz Sp.z.o.o., Poland
G. Kromschroder AG, Germany
Kromschroeder S.A., Spain
Kromschroeder Ltd., UK
Kromschroder Inc., USA
Perfection Corporation, USA
Premagas s.r.o., Slovakia
Premagas Kromschroeder Ukraine s.r.o., Ukraina
Sejong-AMC Corp., Republic Korea
Shanghai ELSTER-AMCO Gas Equipment Co. Ltd., China
Thermo Heating Productions B.V., The Netherlands
Further information on our products and
the ELSTER-AMCO group is available on the
Internet homepage:
Complete Systems from Elster within ELSTER-AMCO
Whether it's regulation, metering, data collection, data transfer or evaluation,
ELSTER-AMCO offers solutions for every application — customized to the specific needs
of each individual customer — either as single components or complete systems.
The metering and regulation product range covers devices for measuring
consumption which can be used both for custody and non -custody transfer
as well as traditional gas regulators for low, medium and high pressures.
For the field of gas metering, ELSTER-AMCO has also developed volume correctors
and flow computers. These range from temperature volume correctors for commercial
customers to flow computers for stations in the fields of gas distribution and
transportation.
A further example illustrating ELSTER-AMCO's comprehensive systems is the data
collection devices. These are characterised by their flexibility. The components of the
EuroTRACE family and the DL240 data loggers are suitable for collecting consumption
data through pulses. In these cases, the meter readings at the end of the month or
a consumption profile at pre-programmed intervals can be called up as required.
These devices can be used for collecting data from all media (i.e. gas, water, heat,
electricity).
The LIS system in combination with the appropriate components reliably collects
and transfers data for evaluation purposes in the fields of gas, electricity, water and
district heating consumption. They are used by tariff customers, special -contract
customers with varying amounts of consumption and by energy suppliers in
substations.
An important component of these systems is the high-performance readout software
WinCOMS. This software prepares all of the data for billing and fulfils one of the
most important criteria in today's energy world: fast and, to a high degree, automatic
collection of all relevant data. In line with customer parameters, the software collects
the billing data fully automatically at the pre-programmed times and makes them
available to the customer. The transferred data is then processed by the WinVIEW
evaluation software, which then sends the completed data — ready to use —
to the relevant accounts departments. In addition to this, the data can be used as
the basis for advising customers on future strategies.
In the following pages, you will find a few examples
from Elster's comprehensive supply program.
Whatever field you are interested in ELSTER-AMCO has the right solution for you.
elster
Products and System Components
Low Pressures Regulators
ZR p.6
ZRE p.6
ZRH p.6
HR p.6
NDAF...E p.6
Medium Pressures Regulators
M2R p.7
MR p.7
MR PN 10 p.7
Displacement Meters
BK-G1.6 to G6 Domestic Diaphragm Meters p.8
BK-G10 to G25 Commerical Diaphragm Meters p.8
BK-G40 to G100 Industrial Diaphragm Meters p.8

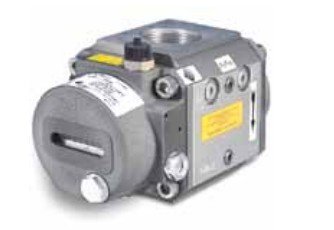

RVG Rotary Meters p.9
Laboratory Gas Meters p.9
G4 to G25 High-Pressure Diaphragm Meters p.9
Flow Meters
TZR/ETM Turbine Meter p.10
Q/QA/QAe Quantometers p.10 - 11

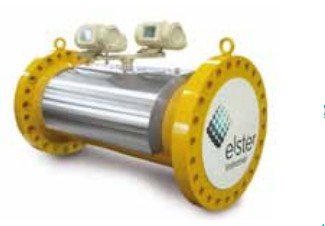

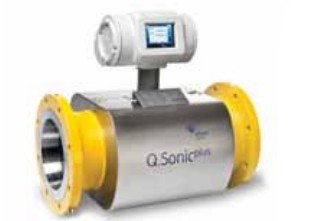

USM Ultrasonic Meters p.11

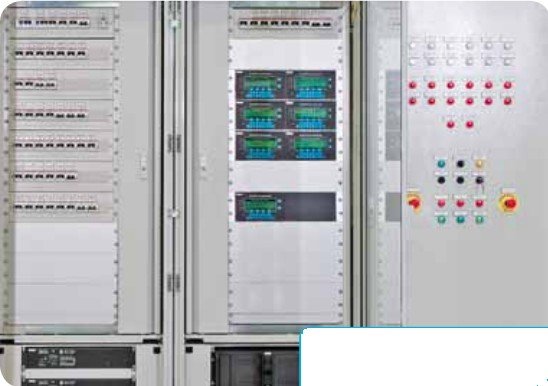

Station Computers
gas-net M1 p.13
Volume Correctors and Flowcomputers
TC-90/T TC-90/K p.12
EK120 EK230 p.12

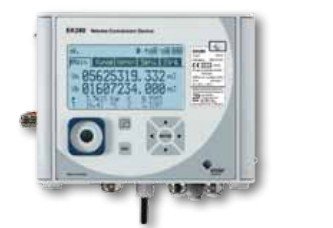

EK260 p.13
gas-net F1 p.13
Data Loggers
DL240 p.14
EuroTRACE
Transponders p.14-15
EuroTRACE
Mobile Data Transfer
Remote Data Transfer
Data Connentrator p.14
AS-200 Readout Device p.15
WinPADS Direct Readout Software p.15
FE230 FE260 p.16
Remote Acces Unit p.16
USer Software
Control Center Software
• Billing
• Evaluation
• Statistics
• Monitoring
WinVIEW Evaluation p.17
WinCOMS Data Readout p.17
GAS-WORKS Software for FLOW COMP Devices, Q1, F1, M1 p.17
Gas Pressure Regulators
Elster gas pressure regulators and governors are spring loaded and equipped with
a safety diaphragm and relief valve. They meet the highest standards in terms of
performance and quality. All our regulators and governors are in accordance with
VP 200 or EN 334 and DIN 3381 and are approved by DVGW.
We supply regulators for low, medium and high pressure. As a standard feature,
the low-pressure regulators are equipped with a safety diaphragm and may also be
provided with a low pressure cut off.
The low-pressure regulators are approved up to 0.1 bar inlet pressure, but they also
operate at an inlet pressure of 0.2 bar.
All our medium -pressure regulators are equipped with a safety shut-off valve.
The medium -pressure regulators with a safety diaphragm are approved up to an
inlet pressure of 1 bar or 4 bar, the medium -pressure regulators with a relief valve
are approved up to an inlet pressure of 1 bar, 4 bar, 6 bar or 10 bar. All our low and
medium -pressure governors and regulators up to 4 bar inlet pressure meet the
requirements of firesafe approval according to VP 200.
As a result of the design, all low and medium -pressure regulators have an approved
inlet pressure resistance of up to 16 bar.
Regulators for Low Pressure
VP 200
ZR Meter Service Governors
ZR series of meter service governors for use
with two -pipe gas meters (BK-G4, BK-G6,
BK-G10 — G16), includes compensating pipe
for vertical installation.
ZRE Co -Axial Meter Service Governors
ZRE series of co -axial meter service governors
for use with co -axial gas meters (BK-G4, BK-G6 ).
The one -arm design of the governors makes
them highly flexible.
ZRH Meter Service Governors
ZRH series of meter service governors for use
with high-performance two -pipe gas meters
(BK-G25), includes compensating pipe for
vertical installation.
• Diameters DN 20, 25, 32,40
• Inlet pressure up to 700 mbar
• Outlet pressure range 70 — 50 mbar
• Inlet pressure resistance up to 16 bar
• Diameter DN 25
• Inlet pressure up to loo mbar
• Outlet pressure range 70 — 50 mbar
• Inlet pressure resistance up to 16 bar
• Diameter DN 25
• Inlet pressure up to 700 mbar
• Outlet pressure range 70 — 50 mbar
• Inlet pressure resistance up to 16 bar
HR Domestic Service Regulators
HR series of service regulators for use with
several meters in small, medium and large
consumption units.
NDAF...E Co -Axial Domestic Service Regulators
NDAF series of co -axial service regulators
for use with several smaller units.
Installation is via special co -axial connectors.
• Diameters DN 25, 32, 40, 50, 80, 700
• Inlet pressure up to 700 mbar
• Outlet pressure range 70 — 50 mbar
• Inlet pressure resistance up to 76 bar
• Diameters DN 25, 40, 50
• Inlet pressure up to 700 mbar
• Outlet pressure range 10— 50 mbar
• Inlet pressure resistance up to 16 bar
Regulators for Medium Pressure
PN 5 bar in accordance with VP 200, CE marked
PN 6/PN 10 bar in accordance with EN 334/DIN 3381, CE marked
M2R Medium -Pressure Regulator (DVGW approved)
The M2R can be used for indoor and outdoor
installations. A thermal shut-off valve is avail-
able especially for indoor installations.
The modular concept of the regulator makes a
wide variety of connections possible, e.g. angled
connection in accordance with European stan-
dards, flanged connection, threaded connection,
flange inlet with threaded outlet connection,
coaxial 25 mm in accordance with VP 200.
Features include: safety diaphragm, built-in
safety shut-off valve, optional low-pressure
cut off valve with manual or automatic reset,
optional relief valve, fire resistant (optional).
Excellent outlet pressure control.
MR Medium -Pressure Regulator
MR series of medium -pressure regulators
available in flanged and threaded versions
for domestic, commercial or industrial use.
The devices are fitted with a safety shut-off
valve with either overpressure or over/under-
pressure cut off and safety diaphragm (and
a relief valve for the 4 and 6 bar devices).
Low-pressure cut off is optional (1 bar version).
MR PN10 High -Pressure Regulator
The MR PN10 series of gas pressure regulators is
spring loaded and fully inlet pressure balanced.
It opens the inlet pressure range up to io bar
and is known for excellent regulation and lock-
up behaviour as well as easy maintenance. The
MR PN10 series is suitable for industrial applica-
tions and small stations. The devices are fitted
with a safety shut-off valve with either an over-
pressure or over/underpressure cut off and a
limited capacity relief valve.
• Diameter 25 mm (1")
• Inlet pressure range 50 mbar— 5 bar
• Outlet pressure range 18— 30 mbar
• Inlet pressure resistance up to 76 bar
• Temperature range —20 °C to +60 °C
• Diameters DN 25, 50
• Inlet pressure range up to 7, 4, 6 bar,
the devices operate starting from a
pressure drop of 4 mbar,fire safe up
to 4 bar
• Outlet pressure range 20— 300 mbar
• Inlet pressure resistance up to 76 bar
• Diameters DN 25, 50
• Inlet pressure range 200 mbar
up to 70 bar
• Outlet pressure range 20— 500 mbar
• Inlet pressure resistance up to 16 bar
• Temperature range -20°C to +60°C
Positive Displacement Meters
Diaphragm Meters
Diaphragm meters are displacement meters where the flow channels
are designed to guarantee optimum flow conditions and a low pressure
loss. All of the meters are approved for custody transfer measurement
by the German PTB and to EN 1359 by German DVGW. They are suitable
for measuring natural gas and a variety of technical gases at up to
0.5 bar. The approved gas temperature range is —20 °C to +50 °C.
The diaphragm meters BK-G1.6 up to G100 are fitted with a pulse
magnet as standard. This allows to retrofit a low -frequency pulser of
the IN -Z31 type or the remote read-out system EuroTRACE.
Domestic Diaphragm Meters, BK-G1.6 to BK-G6
These meters are available in co -axial or two -pipe
versions. The measuring unit operates on the principle of
pneumatic control. This guarantees low noise, long-term
stability and high accuracy and allows the possibility of
including mechanical temperature correction (TC).
Commercial Diaphragm Meters, BK-G10 to BK-G25
These compact meters are available in co -axial or
two -pipe versions with a pressed steel housing. The
measuring unit operates on the principle of pneumatic
control. This guarantees low noise, long-term stability
and high accuracy.
Industrial Diaphragm Meters, BK-G40 to G100
The BK-G40 to G100 meters come in a bolted steel
housing, are available in co -axial and two -pipe versions
and the installation can either be with horizontal
or vertical connections. The measuring insert of the
new BK-G40 and BK-G65 consists of three and four
BK-measuring units working in parallel.
The G100 measuring unit operates on the principle of
the fixed measuring chamber.
This guarantees long-term stability and high accuracy.
• Cyclic volume:
BK-G1.6: 0.8 litres
BK-G2.5: 1.2 litres
BK-G4: 2.0 litres
BK-G6: 3.5 litres
• Rangeability:
BK-G1.6: 0.016 — 3 m3/h
BK-G2.5: 0.025 — 4 m3/h
BK-G4: 0.04— 6 m 3/h
BK-G6: 0.06 — 10 m3/h
• TC correction range:
(not BK-G1.6 V 0.8)
— 5 °C to +35 °C (standard)
— 20 °C to +50 °C (optional)
• Cyclic volume:
BK-G10: 6 litres
BK-G16: 6 litres
BK-G25: 12 litres
• Rangeability:
BK-G10: 0.1 —16 m 3/h
BK-G16: 0.16 — 25 m 3/h
BK-G25: 0.25 — 40 m3/h
• Cyclic volume:
BK-G40: 18 litres
BK-G65: 24 litres
G700: 120 litres
• Rangeability:
BK-G40: 0.4— 65 m 3/h
BK-G65: 0.65— 100 m3/h
G700: 1.0 —160 m3/h
Rotary Meters
RVG Rotary Meters
The RVG G10 to G250 meters operate on the
displacement principle in a rangeability of up
to 1:160.
The housing is made of aluminium or spheroidal
graphite iron. The spheroidal graphite iron ver-
sions are firesafe up to a pressure of 4 bar.
The bearings are lubricated with oil. Two low-
frequency pulsers come as standard and a high-
frequency pulser can be supplied on request.
The compact versions G10 to G25 with
aluminium housings are used mainly in
commercial applications and are ideal for
cabinets with restricted space available.
The meters are designed for pressures up to
12 bar (175 psig).
All ELSTER rotary meters are conform with
EN 12480.
• Rangeability: up to 1:160
• Flow ranges: 0,5 — 400 mlh
• Diameters: DN 25 (1") — 100
• Pressure rates:
PN4, PN12, PN76, ANSI 150
• Ambient /gas temperature:
—20 °C to +60 °C
Laboratory Gas Meters,
Wet and Dry Versions
Wet and dry laboratory gas meters are high -precision
metering devices with a round scale display and
resettable counters.
The wet version is available in seven sizes and in
special versions for aggressive media or operating
pressures up to 160 bar.
All laboratory gas meters can be fitted with pulsers
on request.
• G6 dry version
Flow ranges: 0.06 — 10 m3/h
Operating pressure: 0.5 bar
• Wet version
Flow ranges: 0.002 — 15 m3/h
Seven sizes
Accuracy: 0.5%
Operating pressure: 0.05 bar
• High-pressure version
Measuring range: 0.002 —15 m 3/h
Operating pressure: 160 bar
Flow Meters
Turbine Meters /Quantometers
Turbine meters and Ouantometers are flow meters which display the vol-
ume flowing through the device in actual cubic meters. The incoming gas
is accelerated through the inlet body and strikes the blades of the turbine
wheel. The revolutions of the turbine wheel are transferred to an 8 -digit
roller counter via a multi -stage gear and a magnetic coupling.
Turbine meters are used for official metering and billing purposes (custody
transfer). Ouantometers are short -pattern turbine meters with a length of
1.5 x DN. From a metering point of view and in terms of materials, both
types of meters are suitable for use with combustible gases in the field of
energy supply as well as with a variety of technical gases in industrial
applications. All turbine meters have an EU approval and are registered
with the DVGW.
Special technical features of the Elster turbine meters:
• Measuring cartridge can be exchanged on site
• Measuring range can be adapted with the aid of
special adaptor cartridge
TRZ Turbine Meters
The housing is made of spheroidal graphite iron, cast
steel or welded steel, depending on the pressure rate.
Several versions of the turbine meters are available.
Two low -frequency pulsers and a tamper detection
system come as standard.
High -frequency pulsers are also available on request.
Product specification according European Standard
EN 12261.
ETM Turbine Meters
For a wide range of standard measurements.
Product specification according European Standard
EN 12261.
• Rangeability : 1:20, 1:30
• Flow ranges: 5— 25000 m3/h
• Diameters: DN 50— 600
• Pressure rates:
PN 10— 100, ANSI 150— 600
• 2DN inlet pipe length
according EN 12261
• Ambient temperature
-20° C to +70°C
• Rangeability: 1:20
• Flow ranges:
16 — 2500 m3/h
• Diameters: DN 80 — 200
• Pressure rates:
PN 10, 16, ANSI 150
• 2DN inlet pipe length
according EN 12261
• Ambient temperature
-20°C to +70°C
Q Quantometers
The flanged housing of the Q Quantometers is made
of spheroidal graphite iron, cast steel or welded
steel, depending on the pressure rate. The Q Quanto-
meters are available in a variety of diameters and
pressure ratings.
• Rangeability: 1:20
• Flow ranges:
6 — 25000 m3/h
• Diameters: DN 50— 600
• Pressure rates:
PN 10 — 100,
ANSI 150 — 600
• Ambient temperature
- 20°C to +70°C
QA and QAe Quantometers
The wafer type housing of QA and QAe (with electronic
totalizer) is made of aluminium. Depending on the ver-
sion, the volume is displayed on a mechanical (QA) or
an electronic totalizer (QAe). QA and QAe Ouantometers
combine the high accuracy of the Q series of Quanto-
meters with low weight.
The Quantometers are available in a number of flow
ranges, diameters and pressure ratings. Depending on
the version, a low or medium -frequency pulser and an
optical or M -bus output is avaliable. All of the Ouanto-
meters are DVGW approved.
For special industrial applications, stainless steel versions
are also available.
• Rangeability: up to 1:20
• Flow ranges: 1.6— 1600 m3/h
• Diameters: DN 25— 150
• Pressure rates:
PN 4, PN 16, ANSI 150
• Ambient temperature
- 10°C to +60°C
Encoder index for Turbine and Rotary Meters
Mechanical roller index with opto-electronic reading of
the totalizer. Data transfer to subsequent devices for
fiscal metering via serial interface. Model for Elster
turbine and rotary gas meters as well as retrofit model
for any meter with standardized mechanical drive
according to EN 12261: 2002.
Ultrasonic Meters
USM Ultrasonic Meters
Elster ultrasonic meters are suitable for
measuring natural gas, nitrogen, biogas and
compressed air. The USM has a special
two -channel metering path configuration and
this means that it is completely unaffected by
any flow disturbances.
The meter can register both actual volume
V (m3 ) and actual flow rate 0 (m 3 /h), which can
be displayed alternately. The 4...20 mA interface
transmits a signal proportional to the flow and
this can be used for control or regulation
purposes.
The standard pulse outputs enable the device
to be integrated easily into the [IS energy data
system.
• Rangeability: up to 1:140
• Flow ranges: 2.5 — 1600 m3/h
• Diameters: DN 50— 150
• Pressure rates: up to 20 bar
• Short, compact design
• Maintenance -free, no wear and tear
• Flow -volume meter for natural gas,
nitrogen and compressed air
(further gases in preparation)
• Unaffected by pressure peaks
• Short response time
• Simple installation
• 2 -channel metering
• DVGW approved
Volume Correctors
Temperature -Volume Correctors
TC-90/T and TC-90/K Temperature -Volume Correctors
Temperature -volume correctors with integrated data loggers for
15 end -of -month readings.
• Pressure up to 5 bar programmable
as a constant
• Compressibility programmable as a constant
• 2 pulse inputs (TC-90/K 1 input) for
low -frequency pulsers (up to 1.5 Hz)
• Pt -500 (two -wire system) temperature sensor
input, permanently connected
• Serial interface
• 1 pulse output
• Power supply via battery
• Mounted directly on gas meter
• Ambient temperature -20 °C to +60 °C
System Volume Correctors
These volume correctors are system volume correctors. They have an
additional data storage function for actual and standard volume,
pressure and temperature values.
The stored data can be read out and processed with the help of the
components of the LIS-200 long-term information system (p.14).
EK210 Volume Corrector
This is a compact battery -operated volume corrector for all kinds of standard applications.
Compressibility is used as a constant value. The EK210 can be mounted onto a wall or a
gas meter.
• Pressure range up to 70 bar (absolute)
• Gas temperature range —10 to +60 °C
• Three pulse inputs for low -frequency pulsers
• Temperature sensor, Pt -500, two or four -wire
system
• 2 -key user interface
• Two transistor outputs
• Optical interface
• Power supply via battery
• Built-in pressure sensor
• Assembly for mounting on the meter or wall
• Ambient temperature —20 to +60 °C
• EX -approval for Zone 1 installation
EK230 System Volume Corrector
This is a volume corrector with a built-in data -storage function for meter readings as well
as average values of pressure, temperature, correction factor and supercompressibility for
up to 2 months with an hourly storage interval.
Compressibility is calculated in accordance with AGA-8 GC2 / S-GERG 88 or as a constant
value.The EK230 can be mounted onto a wall or a gas meter.
• Pressure range up to 70 bar (absolute)
• Gas temperature range —70 to +60 °C
• Three pulse inputs for low -frequency pulsers
• Built-in pressure sensor
• Temperature sensor Pt -500, two or four -wire
system
• 4 -key user interface
• Four transistor outputs
• Optical interface
• Optional:
Internal serial interface, e.g. for
connecting a modem
• Power supply via battery
• Assembly for mounting on the meter or
wall mountings by means of bracket
• Ambient temperature —20 to +60 °C
• EX -approval for Zone 1 installation
EK260 System Volume Corrector
This is a volume corrector with a built-in data -storage function for meter readings as well
as average values of pressure, temperature, correction factor and supercompressibility for
up to 9 months with an hourly storage interval.
Compressibility is calculated in accordance with AGA-8 GC2 / S-GERG 88 or as a constant
value. The EK260 can be mounted onto a wall or a gas meter.
• Pressure range up to 70 bar (absolute)
• Gas temperature range —10 to +60 °C
• Three pulse inputs for low -frequency pulsers
• Optional: Encoder -Interface
• Built-in pressure sensor
• Temperature sensor Pt -500, two or four -wire
system
• 6 -key user interface
• Four transistor outputs
• Optical interface
• Internal serial interface, e.g. for
connecting a modem
• Power supply via battery or external
• Assembly for mounting on the meter or
wall mountings by means of bracket
• Ambient temperature —20 to +60 °C
• EX -approval for Zone 1 installation
Flowcomputer
gas -net Fl Energy Flowcomputer
Energy flowcomputer with integrated data logger function. Compressibility is calculated
in accordance with SGERG-88 or AGA 8. The El can be combined with a number of
different intrinsically -safe temperature and pressure sensors.
• 19 "slide -in cassette
• 24 VDC power supply
• Control panel with 76 input keys and
a calibration switch
• Illuminated LC -display with 8 lines,
each with 32 characters, and a status LED
• Pulse inputs [EEx I1C for connecting pulsers
with a maximum frequency of10 kHz;
or for connecting an Elster Cl encoder totalizer
• Pressure sensor input [EEx IIC
for absolute pressure sensors
(4 — 20 mA output or HART protocol)
• sensor input [EEx lb] IIC for Pt -100
(4 -wire system or HART protocol)
• Input of gas analysis data via DSfG or
MODBUS interface
• Various digital and analog outputs
• DSfG interface with maximum
775200 baud data transfer rate
• Event -driven data logger function
• Data interface for connecting to a PC
in order to set parameters and retrieve
logged data
• High-speed bus for connecting
other gas -net modules
Station controlling
gas -net M1 Station Computer
The gas -net M1 systems can handle a wide variety of control and automation functions in
a gas station. The devices can also be fitted with a telephone modem in order to transfer
signals and measurement data to a control center. The gas -net M1 is equipped with
input/ output cards and software components relevant to any specific function.
This anables a combination of functions in one device.
• 19" slide -in cassette
• 24 VDC power supply
• Control panel with display
• Basic software for input and output functions,
monitoring error limits, processing signals,
data logger function and logbook
• Can be extended with input and output cards,
DSfG interface, modem, and software
components for monitoring and
control functions
Optional functions include:
• Volume correction
• Load switching of streams
• Meter proving
• Pressure control
• Various types off/ow control
• Control of gas outlet temperature and
boilers based on an energy balance
calculation
Long -Term Information System LIS-200
The LIS-200 long-term information system is a cost-effective way of
collecting data in the fields of gas, water, district heating and electricity
supply. It can be used both for systems analysis and for billing purposes.
The LIS components provide the ideal solutions to meet the requirements
of data collection on site, data transfer, processing and evaluation.
Data Logger
DL240 Data Logger
The DL240 data logger is equipped with
state-of-the-art micro -electronics. It counts the
pulses from gas, water, heat or electricity meters
and stores them at pre-programmed intervals.
If the interval is one hour, then 6 months worth
of data can be stored. Besides this data,
end -of -month readings and readings at the time
of the readout can also be stored or made
available for transfer.
Special functions such as adding up volumes,
monitoring error limits and tariff switching
extend the use of the data logger beyond mere
data storage.
DL240
• 4 digital inputs, 2 digital outputs
• Battery -powered
• Optional: integrated modem
and mains power unit
• Available modems:
Digital (ISDN)
Analog (PSTN)
GSM
• Ethernet interface
EuroTRACE
EuroTRACE is an automatic meter reading system. In conjunc-
tion with our range of services, it can easily be connected to
already -installed meters and integrated to support your
existing billing system. The EuroTRACE system consists of
transponders, data concentrators and software. The trans-
ponder adds the pulses, generates the counter readings and
transmits them automatically via radio signals to a data con-
centrator. One concentrator can store the data from up to
1000 transponders. The data is then called up via modem by
our software and can be transferred to a database.
Transponder
ET 203 Transponder
A radio module which can be fitted to any meter with a potential -free relay or pulse
output for collecting end -of -month meter readings, for use with electricity, water,
district heating, compressed air and gas meters.
• Transmitted data:
- Device serial number,
customer ID number
- Current date
- Current meter reading, middle -of -month
reading, end -of -month reading
- Scale, unit, calibration validity
- Tamper detection message,
status message
- 20 alphanumerical characters,
freely configurable for each individual
customer
• Power supply: 3 V lithium battery
• Operational life of battery 8 years
• Ambient temperature range: 0 to +60 °C
• Output:
- Carrier frequency 433 Mhz (ISM band)
- Transmitting power << 1 mW
• Data transfer to radio control center:
10-14 times per day at random intervals
• Data update after every transmission
• BZT registration number D 810 022 L
Data Concentrator
ELM 203 Data Concentrator
These devices collect and store data transmitted by the transponders (end -of -month,
middle -of -month and current readings). They collect data from electricity, water,
district heating, compressed air and gas meters as well as from electronic heat cost
allocators (from some manufacturers).
• Data that can be called up from each meter:
- Device serial number, customer ID number
- Current date
- Current meter reading,
end -of -day total reading
- Middle -of -month reading,
end -of -month reading
- Scale, unit, calibration validity
- Tamper detection message, status message
- 20 alphanumerical characters,freely
configurable for each individual customer
• Storage capacity:
- Current meter readings 3 days
(optional up to 37 days)
- End -of -day totals 2 weeks
(optional up to 6 months)
- Middle -of -month and end -of -month readings
3 months (optional up to 18 months)
• Power supply:
230 VAC/50 Hz
• Power consumption:
approx. 14 W
(depends on the WAN connection)
• Operational life of booster battery:
10 years
• Actual temperature range:
0 to +50 °C
• Inputs:
Maximum 230 meters
• Outputs:
RS 232, IEC 1107, various modems
• Available modems:
Digital (ISDN)
Analog (PSTN)
GSM
Receiver
ER 202 Receiver
These devices receive transmitted data
from radio modules and forward it via
an internal bus to a data concentrator.
• Power supply: via the data concentrator
• Ambient temperature range: 0 to +50°C
• BZT registration number D 800 138 K
Mobile Data Transfer
AS -200 Readout Device
Robust hand-held terminal for calling up stored data from the DL240 data logger as
well as from the EK210, EK230 and EK260 volume correctors. The device is also used
for transferring the data to the control center for analysis.
WinPADS Direct Readout Software
WinPADs is used for reading out the data from data loggers and volume correctors and
for setting the parameters in the same devices. This is all done via a laptop computer
on site or via telephone networks.
Remote Data Transfer
Remote Access Unit for gas -net, GAS -MAX, GAS -ACE
Different possibilities for a remote
access to devices in gas stations.
• Different protocols possible - i.e. the DI modem
device works according to the DSfG protocol
(digital interface for gas measuring devices),
optional MODBUS protocol available
• Connection via telephone cable network
(analog, ISDN) or GSM mobile network
FE260 Function Extension
The FE260 is a combination of a power supply and an EX -barrier for the serial interface
and digital outputs of the volume correctors EK230 and EK260.
For data communication via telephone networks, different modem technologies like PSTN
(analog), ISDN (digital) and GSM can be mounted directly into the FE260.
To allow the use of all kinds of standard modems available on the market, alternatively
an RS232 serial interface board can be installed, where the external modem can be
connected.
• Power supply for volume correctors
• Integrated Modem (PSTN, ISDN, GSM)
Different modems can be integrated
• EX -barrier for serial interface
• EX -approval [EEx lb
• EX -barrier for digital outputs
• Power supply 230 VAC
FE230 Function Extension
Providing data communication for the EK230 and EK260 volume correctors when they are
installed in a gas station with no power supply or telephone connection is the main rea-
son for using the FE230 function extension unit.
The FE230 includes a GSM data radio modem for data communication via public mobile
telephone networks. The antenna for the modem is built into the housing of the device.
In order to optimise the battery life, a time span can be programmed within which the
modem is activated and the data can be called up.
• Battery -powered
• EX -approval [EEx lb] 11B/C
• EX -barrier for serial interface
• Integrated GSM -Modem
• Integrated antenna
Software
Win LOOK Archive Viewer
WinLOOK is a simple software package for evaluating the archive data in devices belong-
ing to the LIS-zoo product family (EKzio, EK230, EK260 and DL24o).WinLOOK makes it
easy for the user to view the archive data from the devices in both tabular and graphical
form and it is not necessary to have a database in order to do so. The logbooks and audit
trail can also be analysed with the help of WinLOOK.WinLOOK is, therefore, suitable for
use as a diagnostic tool in the event of system errors.
In addition, WinLOOK also offers the possibility of exporting the archive data from the
devices into EXCEL or WORD so the data can be further processed using other programs.
WinVIEW Data Management Software
The WinVIEW program is used for archiving, evaluating and analysing the data from
Elster's LI5-100, LI5-200 and Eurotrace product lines and for registering data from devices
with a DSfG interface. The program processes meter readings, consumption data,
analog metering data and specific events and then stores the information for the
purpose of any further evaluation. To do this, WinVIEW offers a variety of graphics and
print-outs as well as a high level of flexibility in data transfer.
The user interface is freely configurable and the software functions along the lines of
Microsoft Office. It is ideal for the administration of data from a number of metering
points. On top of this, the use of the software within a network is controlled by a user
administration system which can issue different rights of access for processing the data.
All of the functions and possibilities which the WinLIS evaluation software offers are also
available with WinVIEW.
WinCOMS Data Readout Software
WinCOMS allows the user to transfer data from the components of the LI5-200 system
automatically and is designed especially for use with telephone networks.
The transmitted data can then be further processed by the WinVIEW evaluation software.
GAS-WORKS Software Package for Setting Parameters,
Readout and Evaluation for gas -net, GAS -MAX, GAS -ACE, etc.
GAS -WORKS is a modularly expand-
able program system with modules
for parameterization and for data
readout.
• Administration of parameter and archive data
of various types of devices in the basic system
GW-BASE
• Administration of data hierarchies, which can be
configured specifically for each individual user
• Access to the device data via data interface,
telephone modem and memory card
• Supports remote data transfer
• Remote operating function
• Data evaluation and documentation
by means of Excel macros

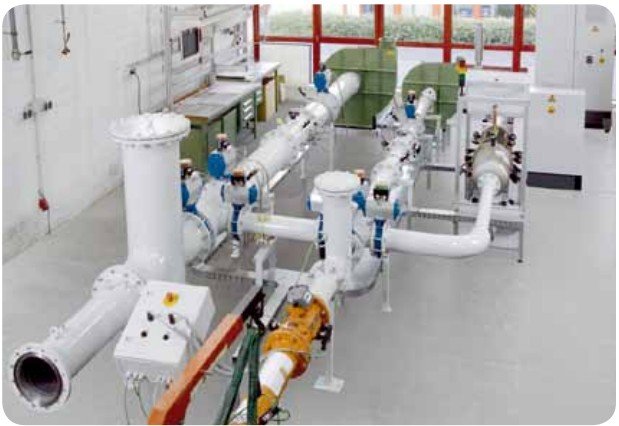

Elster Test Rig Technology
Nowadays, low-pressure test rigs are required to be as flexible as possible while at the same time maintaining the highest
accuracy and the shortest test times possible. Our test rigs meet these requirements in every respect. Master meters operating
with sonic nozzles provide the highest level of long-term stability and precision available in the field of generating flow
conditions and registering volume. On top of this, by combining different nozzles it is possible in a very short time to adjust the
flow rate for the test run. This means that the typical disadvantages of conventional test rigs with low flow rates, e.g. long test
times or a high susceptibility to temperature influences, can be avoided by using sonic nozzle technology.
Gas meter test rigs involve a technical competence which goes far beyond the simple assembly of products. In many countries
throughout the world, from China to Poland and Canada to Argentina, Elster and Kromschr5der are involved in the field of
testing and are reputable partners and consultants of metrological institutes, gas suppliers and manufacturers. Our rigs are
customized to fulfill the specific needs of the customer.
Our supply ranges from individual master meters to complete test rig systems.
Elster Gas Meter Test Rigs Worldwide
Domestic Diaphragm Meter Test Rigs
Low Pressure Test Rigs for Large -Volume Meters
High Pressure Test Rigs
21 in Germany
Arzamas/RUS
Brest/BELO
Budapest/HUN
Buenos Aires/ARG
Chongquin/CHINA
Ghardaia/ALG
Istanbul/TUR
Krakau/POL
Nebraska City/USA
Paris/F
Rotterdam/NL
Salerno/I
San Luis Petosi/MEX
Stara Tura/SLK
Tarnowskie/POL
Tipton/GB
Toronto/CAN
Warsaw/POL
Today’s focus in the gas world is on safety, reliability, availability and minimizing
operating costs. The demand for energy is growing, yet on the other
hand, high targets to reduce global CO2 emissions are being set. Shale gas
is changing the global gas flow, new pipelines have been built or are under
construction and are being connected to new LNG terminals. The number of
gas-fired power plants is growing every year. Biogas generation is becoming
more important, especially in Europe, and new ideas such as “Power to Gas”
are being implemented. The basis for all these requirements are reliable, highend
products and system solutions.
Elster, the worldwide market leader for state-of-the-art gas measurement and
regulation and electronic systems, offers a very wide range of products and
solutions including complex installations with data transfer systems. On a global
gas market we are meeting the broadest variety of technical or customerspecific
requirements. A wide spectrum of after-sales products such as on-site
meter diagnostics, long-term maintenance and inspection contracts and
technical hotlines are completing our product portfolio.
Our target is to be the best gas measurement and gas safety control company
in the world – to support your needs.
Gas measurement and control
Elster range of products and services
3800 employees
12 production plants in Europe,
Asia, Latin America and USA
Quality Management in accordance
with ISO 9001 : 2008
We are happy to be measured by the degree of your satisfaction
Innovation, quality and safety have always provided
the basis for Elster-Instromet’s success.
For over 170 years we have had a major bearing
on developments in gas measuring and
control equipment. Whether it’s a matter of regulating
or measuring, or recording, transmitting
or evaluating data: Elster-Instromet offers you
solutions for every field of application. Tailored
to your specific requirements, as individual
components or as a complete system.
Industrial companies, trading companies and
energy suppliers value Elster-Instromet as a
reliable partner. Our customers’ high quality
requirements are also our requirements. We
fulfil these requirements with high-quality
products, measurement solutions and madeto-measure
services, as well as a number
of service support points, sales outlets and
production sites worldwide.
Enivronmental manufacture, energy-saving
operation ensuring a long service life, combined
with the greatest possible degree of
reusability are essential aspects of product
quality, which we are continually improving.
Thanks to intensive research and development,
we are creating future-oriented solutions. Thus
we confirm our position as a worldwide market
leader, and we carry our customers with us to
economic success.
Smart metering
Elster range of products and services
Smart metering
Metered for the future.
To promote the protection of the environment,
European countries aim to preserve
energy resources. Consumers should be
aware of and regularly informed of their
energy consumption. Smart metering is
a new technology that provides regular
consumption values using remote readout,
making the end user’s individual
energy consumption more transparent.
The consumer is thus able to systematically
gain energy awareness and reduce
energy costs. With innovative Elster gas
meters for smart metering systems, automated
meter reading is possible at any
time, for example when moving house or
changing supplier. Energy suppliers benefit
from the highest possible level of flexibility.
There is no longer the need to visit the
customers or make estimations in the
event of price alterations. Moreover, they
are already satisfying the legal framework
conditions which state that energy
consumption is to be made transparent
and readout and billing intervals are to
be made shorter. For the attraction of being
able to change the personal use of energy
sustainably is much greater than in the
case of annual consumption billing.
The Absolute ENCODER AE is a modern
index, whose absolute meter reading can
be read out via remote data transfer. For
communication purposes, the AE may be
supplemented with various communication
modules, which allow for cable-based
or wireless data transfer and which contain
a battery. The diaphragm gas meter
with AE index derives its energy from the
mains pressure and thus operates independently
of external energy supply.
Being incorporated into a data management
system, the diaphragm gas meter
with Absolute ENCODER presents an ideal
basis for a smart meter infrastructure
The electronic index is a smart option for
implementing smart metering for diaphragm
gas meters. It offers the possibility
of querying historical data, displaying
tariffs and switching an optionally integrated
valve. The modular design allows
the communication equipment to be retrofitted
or the batteries to be changed even
while it is installed.
A universal and open interface concept,
the Universal Metering Interface (UMI),
has been developed for connecting the
communication modules to the meter.
This allows the gas meter to be fitted or
retrofitted with a communication module
under economic conditions. UMI may be
universally implemented in measuring
instruments for electricity, gas, water and
heat meters, as well as in data concentrators,
in-home displays and other units.
Regarding encryption, authentication and
authorization UMI satisfies the most stringent
security requirements
The data is usually read out via a wireless
or a cable-based connection. Using Internet-based
applications, it is possible for
both energy suppliers and consumers
to check the current daily, monthly and
annual meter readings. In addition to
meters for smart metering, Elster’s range
of products and services also covers the
necessary components for data communication
and for networking the different
system components.
Smart metering
Elster range of products and services
A smart extension to proven technologyAs an extension to the purely mechanical diaphragm gas meters, which have been proving their worth for decades, there are numerous variants available for smart gas metering and remote gas data transfer.
Absolute ENCODER AE
The Absolute ENCODER index for diaphragm gas meters consists of a mechanical index in
which 7 individual digit rollers are opto-electronically scanned and read out. The data is
then continually transferred as a data word via a digital interface to the connected communication
modules, whereby permanent data transfer security is guaranteed compared
with the conventional transfer of pulses. The Absolute ENCODER’s consistent modular design
minimizes the efforts and expenditure of installation, commissioning and data provision
and ensures investment security for future applications. The Absolute ENCODER AE can be
retrofitted with cable-based or wireless communication even after installation in the network.
Electronic index themis
The electronic index themis for diaphragm gas meters offers a display and further functions
such as local and remote communication, tariffs, load profiles, valve control, data
logging, and software update. A wide range of communications solutions are available for
the themis index, which guarantee the authenticity and integrity of the data transferred
between the communications partners and also allow granting authorization to users. A
secure, remotely controlled software update and the modular principle guarantee that the
technology is future-proof and that it can be adjusted to meet new challenges retrospectively
at low cost if necessary. The electronic index themis is applicable for both residential
and commercial & industrial use. Different variants of the electronic index are available:
themis-alpha, themis-plus, and themis-log. The indexes are supplied ready-configured,
thus vastly reducing installation work.
Valve Ve
By replacing conventional diaphragm gas meters, smart meters with additional functionality
can be used, e.g. remote connection and disconnection of the gas supply internally within
the meter itself. This significantly reduces the costs and labour caused by consumers in
default of payment. The integrated valve in the diaphragm gas meter allows the gas supply
to be remotely connected and disconnected. The integrated valve detects if the valve is
closed or opened and provides a safe re-establishment of the gas supply with a protection
against unintentional opening of the valve: Gas supply is only enabled once all of the customer’s
gas appliances are closed.
Energy suppliers count on Absolute ENCODER technology
One of the largest energy suppliers in
Germany has now put its trust in Elster
diaphragm gas meters with Absolute
ENCODER technology, following a number
of pilot projects. The advantages are obvious:
no batteries in the metrologyrelevant part of
the meter, absolute meter readings, simple
installation without additional costs involved
in parameter setting, and an index whose
service life corresponds to that of the meter.
Furthermore, the interface design of the
Absolute ENCODER index offers complete
flexibility for installation. Elster is looking forward
to being a reliable partner for you for
future innovative product solutions
Gas pressure regulation
Elster range of products and services
Gas pressure regulation
Strong in performance and quality – Elster gas pressure regulators meet the highest demands for domestic, commercial and industrial gas supply.
Regulators for low pressure
J42 meter service regulator
The J42 is an angled type meter service regulator
for low-pressure domestic applications.
It is available with or without an integrated
low-pressure cut-off valve, which
has an automatic reset.
• Diameter: DN 20
• Inlet pressure: up to 350 mbar
• Outlet pressure range: 10 – 40 mbar
J78 domestic service regulator
The J78 range is a compact, accurate and
economical regulator. It is suitable for a wide
range of commercial and industrial applications,
including such OEM equipment as boiler
and burner trains. The J78 offers positive
lock-up, and is available in a number of
sizes.
J48 and J90 industrial service
regulators
The J48 / J90 series is a versatile range of
industrial low-pressure regula-tors suitable
for a wide range of pressure reduction applications.
Several types are also available for
angled installation directly onto the meter.
ZR meter service regulator
The ZR series of meter service regulators for
low-pressure applications and for use with
gas meters is available with or without an
integrated lowpressure cut-off valve, which
has an automatic reset.
• Diameters: DN 20, 25, 32, 40, 50
and DN 25 co-axial • Inlet pressure: up to 100 mbar • Outlet pressure range: 20 – 50 mbar • DVGW approved, fire safe in accordance with DIN 33 822
HR and NDAF domestic service regulators
The HR / NDAF series of service regulators is
intended for use with several meters in small,
medium and large consumption units. Installation
of the NDAF type is carried out via special
co-axial connectors. They are available
with or without an inte-grated low-pressure
cut-off valve, which has an automatic reset.
• Diameters HR: DN 25, 32, 40, 50, 80,
100, NDAF: DN 25, 40 ,50
• Inlet pressure up to 100 mbar
• Outlet pressure range: 10 – 50 mbar
• Inlet pressure resistance up to 16 bar
• DVGW approved, fire safe in accordance
with DIN 33 822
Regulators for medium pressureIn accordance with Pressure Equipment Directive 97/23/EC (PED)
M2R medium-pressure regulator
The M2R can be used for indoor and outdoor
installations. Due to the basic modular concept,
it is possible to supply a large number of
different con-nections and equipment features
in order to meet individual cus-tomer requirements.
The standard meter installation can be
adapted by choosing from different inlet and
outlet connections and can be made to suit a
variety of needs, e.g. angled or in-line connections
in accordance with European standards.
Features include: built-in safety shut-off valve offering over pressure protection, low-pressure cut-off valve with manual or automatic reset, limited capacity relief valve, safety diaphragm, optional fire resistance.
• Inlet pressure range: 50 mbar – 6 bar
• Capacity range: 6, 10, 25, 40, 50, 75,
100 m³/h
• Outlet pressure range: 18 – 100,
100 – 400 mbar
• Inlet pressure resistance up to 16 bar
• Temperature range: -20°C to 60°C
• Approved by DVGW according to
EN334/EN14382
MR and MAF…E medium-pressure regulators
The MR series of gas pressure regulators is
spring-loaded and fully inlet pressure balanced.
The devices have a standard integrated
safety shut-off valve offering overpressure
slam shut and/or underpressure slam shut
and an integrated limited capacity relief valve.
It is a member of the MR regulator family,
which is known for excellent regulation and
lock-up behaviour as well as easy maintenance.
The MR series is used in industrial or commercial applications and small stations. The regulators are available in anged and
threaded versions. The MAF…E series installation is via a special co-axial connection.
• Diameters: DN 25, 40, 50
• Inlet pressure range: up to 1, 5 or 6
bar, the devices operate starting
from a differential pressure of 4
mbar, fire safe up to 5 bar
• Outlet pressure range:
20 – 300 mbar
• Inlet pressure resistance up to 16 bar
• DVGW approved, PN 1 / PN 5: fire
safe in accordance with DIN 33 822,
PN6: according to EN334/EN14382
Gas pressure regulation
Elster range of products and services
J123 medium-pressure regulator
The J123 is a spring-loaded and fully inlet
pressure balanced distribution and industrial
regulator that can also be operated by auxiliary
systems and is suitable for use as a
monitor or as an active regulator. The J123
has been designed on a modular basis for
in-line servicing. The J123HP is available
where higher outlet pressures are required.
J125 medium-pressure regulator
The J125 series provides a full range of regulators
for service applications where accurate
pressure control is required. The units are
ideal for indus-trial pressure reducing, metering
stations and for district distribu-tion. The
J125 is a spring-loaded regulator; several
valve oriἀces are available to cover the full
inlet pressure range. The devices have a
standard integrated safety shut-off valve
offering overpressure slam shut and/or
underpressure slam shut and an integrated
full or limited capacity relief valve. A monitor
version is also available
Regulators for high pressureIn accordance with Pressure Equipment Directive 97/23/EC (PED)
MR PN 10 high-pressure regulator
The MR PN 10 series has a flanged connection
and is suitable for commer-cial and
industrial supply. The standard impulse is
external. The devices are fitted with an integrated
safety shut off valve and also have an
inte-grated limited capacity relief valve.
• Diameters: DN 25, 50 • Inlet pressure range: 0.2 – 10 bar • Outlet pressure range: 20 – 500 mbar • Inlet pressure resistance: up to 16 bar • Approved by DVGW according to EN334/EN14382
MR HP20 high-pressure regulator
The MR HP20 gas pressure regulator is
spring loaded and fully inlet pres-sure balanced.
The device has a standard integrated
safety shut-off valve (SSV). Its modular design
allows the regulator mechanism to be
removed without disturbing the pipework.
Routine servicing and maintenance hence
may be under-taken under workshop conditions.
• Diameters: DN 25, DN 50, DN 80,
DN 100
• Inlet pressure range: 0,1 – 20 bar
• Oultet pressure range:
20 – 2000 mbar
• Approved by DVGW according to
EN334/EN14382
Gas pressure regulation
Elster range of products and services
Axial flow valve high-pressure regulator
The AFV high-pressure regulator is a pilotoperated
flexible element valve type for
transmission, distribution and industrial use.
The regulators are extremely compact and
lightweight, easy to install and service, and
provide a streamlined flow path for quiet
operation. Axial flow valves are installed
between the flanges of standard pipelines.
Also used for pressure regulation, overpres-
sure relief, flow control or on/off control.
• Diameters: DN 50 to DN 300
• Inlet pressure range: up to 100 bar,
ANSI 150, 300, 600
• Outlet pressure range:
20 mbar – 42 bar
• Approved by DVGW according to
EN334/EN14382
040 series field regulator
The 040 series has a simple design and a
rugged construction. Dependable and versa-
tile, this regulator is suitable for a wide range
of regulation problems. Manufactured from
high-grade material, the 040 series allows
full inlet pressure retention in all major body
and diaphragm case components. Also used
for monitor applications or overpressure
relief.
• Body: 1“ BSPT / NPT / ANSI
150 / 300 / 600 RF
• Max. inlet pressure: 70 bar
• Outlet pressure range: 0.2 – 13.8 bar
• Other versions: 040-S all steel,
max. inlet pressure 100 bar
Safety devices
S100 and S200 slam shut valves
The S100 slam shut valve protects gas
installations against dangerous overpressure
or underpressure (S200) conditions and is
normally fitted on the inlet of the regulator.
The S100 incorporates a visual valve position
indicator.
• Diameters: DN 50, 80 & 100
• Max. inlet pressure: 19 bar
• Trip-off range: up to 6 bar
• Temperature: -20°C to +70°C
• Approved by BGC according V9 and
by DVGW according to EN14382
Diaphragm gas meters
Elster range of products and services
Diaphragm gas meters
Stable quality for a long service life and high level of processing – diaphragm gas meters are reliable meters for gas measurement.
BK-G1.6 to BK-G6 domestic diaphragm meters
These meters are available in co-axial or
two-pipe versions. The measuring unit operates
on the principle of pneumatic control.
This guarantees low noise, long-term stability
and high accuracy, and allows the possibility
of including mechanical temperature
correction.
• Measuring chamber volume:
BK-G1.6 / BK-G2.5: 1.2 litres
BK-G4:1.2 or 2.0 litres
BK-G6: 2.0 litres
• Measuring range:
BK-G1.6: 0.016 –3 m³/h
BK-G2.5: 0.025 – 4 m³/h
BK-G4: 0.04 – 6 m³/h
BK-G6: 0.06 – 10 m³/h
• Temperature correction range
(not BK-G1.6 V 0.8): -10°C to +40°C
(standard), -25°C to +40°C (option)
BK-G10 to BK-G25 commercial diaphragm meters
These compact meters are available in coaxial
or two-pipe versions with a pressed
steel housing. The measuring unit operates
on the principle of pneumatic control. This
guarantees low noise, long-term stability
andhigh accuracy. Optionally the meters can
be equipped with integrated temperature
correction
BK-G40, BK-G65, BK-G100 industrial diaphragm meters
BK-G40, BK-G65 and BK-G100 are compact,
light-weight industrial diaphragm gas meters
that have been designed to meet the highest
demands with respect to measuring accuracy
and safety. The innovative new developments
are based on the experience of many decades.
Optionally the meters can be equipped with
integrated temperature correction.
Absolute ENCODER AE
The Absolute ENCODER index for diaphragm
meters consists of a mechanical index which
is opto-electronically scanned and read out.
Data transfer security is significantly increased
compared with the conventional transfer of
pulses, since the meter reading is recorded
and transferred as an absolute value. For
further data transmission, various communication
modules with standardized interfaces
are available.
Chekker
The Chekker index uses a two-digit, coded
number to check data, which is manually
read out from domestic meters.
themisalpha
The smart multi-functional themis alpha index
for diaphragm gas meters provides features,
which go well beyond simple remote reading.
The combination of existing options (timeand
load-dependent tariffs, valve control,
load profiles, communications interval control,
data logging, etc.) enables the index to
be adjusted to suit the needs of individual
customers. Different communications modules
are available for various markets, for example
M-Bus (wired or wireless), GSM/GPRS or ZigBee.
themis log
The smart electronic themis log index for commercial
and industrial diaphragm gas meters
(BK-G10 – BK-G100) provides well-known
themis features, plus integrated data logging
fuction, a pulse output and an ATEX Zone 0
approval for alternative operation in potentially
explosive atmosphere. A GSM/GPRS
communications module is available for the
themis log.
themis plus
The smart electronic themis plus index for commercial
and industrial diaphragm gas meters.
(BK-G10 – BK-G40) is capable of directly outputting
cumulative volumes using an integrated
volume conversion device (temperature and
pressure compensation). This innovative Elster
product has been approved as gas meter
according to MID. The meter features the
existing options (time- and load-dependent
tariffs, load profiles, communications interval
control, data logging, etc.) as well as a pulse
Absolute ENCODER AE
The Absolute ENCODER index for diaphragm
meters consists of a mechanical index which
is opto-electronically scanned and read out.
Data transfer security is significantly increased
compared with the conventional transfer of
pulses, since the meter reading is recorded
and transferred as an absolute value. For
further data transmission, various communication
modules with standardized interfaces
are available.
Chekker
The Chekker index uses a two-digit, coded
number to check data, which is manually
read out from domestic meters.
output and an ATEX Zone 1 approval for alternative operation in potentially explosive atmosphere.
A GSM/GPRS communications module is available for the themis plus. This implementation complies
with the requirements of the Italian UNI-TS 11291 standard.
Industrial gas meters
Elster range of products and services
Industrial gas meters
Mechanical and ultrasonic flow metering – Elster offers a wide range of
different measurement devices in the field of gas transport and gas distribution.
That comprises volumetric meters like diaphragm meters and rotary
meters, as well as flow meters like turbine meters and ultrasonic meters.Rotary gas metersRotary gas meters are volumetric meters for gaseous media using the positive displacement principle.
They record the gas volume under operating conditions. Electronic volume converters can be used in order
to correct the volume to the standard volume.
RVG-ST G10-G25
The compact meters RVG-ST G10 to G25 constitute
the starter models of Elster-Instromet’s
rotary gas meter product range. Thanks to
their small dimensions, they can be used as
a possible alternative to diaphragm gas
meters.
RABO ® G16-G250
RABO combines tried-and-tested product
features of previous rotary gas meters from
Elster-Instromet and is a convincing product
because it offers a large range of futureorientated
features. Meters RABO G16 to
G250 operate at load ranges of up to 1:160.
Housings made from aluminium or spheroidal
graphite iron can be provided, ensuring
that the meters comply with the current HTB
requirements. The RABO is fitted with two
LF pulse generators and a tamper detection
contact as standard.
• Nominal diameters: 32 – 100 mm • Flow range: 0.6 – 400 m3/h • Measuring range: 1:20 to 1:160 • Housing material: aluminium or spheroidal graphite iron • Pressure range: 0 – 20 bar, ANSI 150
Industrial gas meters
Elster range of products and services
IRM-3 DUO G400-G1000
The IRM-3 DUO meters round off the rotary
gas meter portfolio. The combination of a
compact design and two phase-shifted
pairs of impellers allows flow rates of up to
1600 m3
/h to be achieved with high pressures
of up to 16 bar.
Absolute ENCODER S1D
For use with our mechanical measuring
devices, we offer intelligent index solutions
which can help to optimize billing processes.
The Absolute ENCODER index for mechanical
gas meters consists of a mechanical index in
which each individual digit roller is opto-electronically
scanned and read out. The data
is then continually transferred as a data word
via a digital interface to a downstream device
(e.g. volume corrector), whereby permanent
data transfer security is guaranteed, compared
with the conventional transfer of pulses.
• Number of digit rollers: 8 • Temperature range: -20°C to +60°C • Safety class: IP 67 • Interfaces: Namur / SCR+ / M-Bus • ATEX approval: II 2G EEx ib IIB T4
Industrial gas meters
Elster range of products and services
Turbine gas meters & quantometers
Turbine gas meters & quantometers are flow meters that display the flow volume in actual cubic metres.
Quantometers are ideally used in noncustody transfer applications.
TRZ2 turbine gas meter
Elster-Instromet TRZ2 turbine gas meters are
well approved and widely used within the field
of gas distribution. They feature a patented
measuring cartridge which is mounted using
O-rings and is installed free of mechanical
stress. It is therefore not affected by any
installation effects or ambient influences. The
TRZ2 standard version is equipped with permanently
lubricated bearings and the index
head. For pressure rating PN25 upwards, the
manual oil pump comes as standard.
• Nominal diameters: 50 – 150 mm
• Flow range: 5 – 1600 m3/h
• Measuring range (LP air): 1:20 to 1:30
• Housing material: spheroidal
graphite iron, cast steel, steel
• Pressure range: 0 – 100 bar
• Inlet and outlet section: >= 2 DN
SM-RI-X turbine gas meter
SM-RI-X meters are robust measuring instruments
which are specially suited for transporting
gas at high operating pressures. The
SM-RI-X is equipped with an oil lubrication
system and a metal index head as standard;
a low-cost medium frequency pickup in the
index head is optionally available for all
nominal sizes. The SM-RI-X is also available
as a special version for high-temperature
applications up to 170°C (e.g. for power
plants) and for measuring ethylene.
• Nominal diameters: 200 – 600 mm • Flow range: 50 – 25,000 m3/h • Measuring range (LP air): 1:20 to 1:30 • Housing material: spheroidal graphite iron, cast steel, cryogenic steel • Pressure range: 0 – 100 bar • Inlet and outlet section: >= 2 DN
SM-RI-2 turbine gas meter
The SM-RI-2 is the world’s first turbine gas
meter allowing optional bi-directional gas
measurement. Furthermore, the product
features an extended capacity (identical to
the ultrasonic meter) and is notable due to
its significantly reduced pressure loss be -
haviour. The SM-RI-2 is made of cryogenic
steel and equipped with a HF sensor as
standard.
• Nominal diameters: 200 – 600 mm • Flow range: 32 – 40,000 m3/h • Measuring range (LP air): 1:20 to 1:30 • Housing material: cryogenic steel • Pressure range: 0 – 100 bar • Inlet section: >= 5 DN
Industrial gas meters
Elster range of products and services
Absolute ENCODER S1
The Absolute ENCODER index for mechanical
gas meters consists of a mechanical index in
which each individual digit roller is opto-electronically
scanned and read out. The data is
then continually transferred as a data word
via a digital interface to a downstream device
(e. g. volume corrector), whereby permanent
data transfer security is guaranteed, compared
with the conventional transfer of pulses.
• Number of digit rollers: 8 • Temperature range: -20°C to +60°C • Safety class: IP 67 • Interfaces: Namur / SCR+ / M-Bus • Atex approval: II 2G EEx ib IIB T4
TurbinScope ® diagnostic tool
This unique service is used to examine meter
performance under real operating conditions.
Data is collected on-site and is analyzed at
the factory to determine meter and installation
conditions. Possible outcomes of these
analyses include discovering misreading due
to installation effects, turbine blade damage,
bearing damage and accuracy forecasts at
minimum flow. This method has been
approved by the Dutch NMi.
Recording of: • Installation effects • Flow pulsations • Working conditions of turbine meter bearings • Error forecast at low flow rates
Q and Q75 quantometers
Q and Q75 quantometers are meters for
non-custody transfer gas measurements
and are renowned in industry and trade alike
as robust and precise turbine flow meters.
They are good value and are suitable for
highly accurate and reliable measurements
even in high flow and pressure ranges.
• Nominal diameters: 50 – 600 mm • Flow range: 6 – 25,000 m3/h • Measuring range (LP air): 1:20 (factory test) • Pressure range 0 – 100 bar
QA and QAe quantometers
QA and QAe quantometers are flow meters
for non-custody transfer gas measurements
that display the flow volume in actual cubic
metres. Depending on the version, the volume
is displayed on a mechanical (QA) or
an electronic index (QAe). QA and QAe quantometers
combine the high accuracy of the
Q / Q75 series of quantometers with low
weight as a result of their aluminium housing.
• Nominal diameters: 25 – 150 mm • Flow range: 1.6 – 1600 m3/h • Measuring range (LP air): 1:10 to 1:20 (factory test) • Pressure range: 0 – 20 bar (fuel gases =< DN 40 up to 4 bar)
Industrial gas meters
Elster range of products and services
Ultrasonic gas meters
Ultrasonic gas meters have for many years been in use all over the world in the field of gas metering
and have proven their reliability in the offshore sector on platforms, as well as in gas transport and gas
distribution. Since they operate without any moving mechanical parts, they are particularly robust,
require almost no maintenance and do not create any loss in pressure.
Q.Sonic plus ultrasonic gas meter
The Q.Sonic plus multi-path ultrasonic gas
meter from Elster-Instromet is ideally suited
for custody transfer measurements of natural
gas. The patented arrangement of measuring
paths in conjunction with sophisticated
ultrasonic sensors and digital signal processing
account for maximum measurement
accuracy with excellent long-term stability.
The flow profile analysis of the Q.Sonic plus
allows the otherwise conventional use of a
flow conditioner to be dispensed with in
many applications.
• Nominal diameters: 80 – 1400 mm • Gas pressure up to 150 bar • Gas temperature up to 85°C • 6 measuring paths (four swirl paths with double reflection and two single reflection paths) • Colour graphic screen with 7 touchsensitive sections • Integrated flow computer • Impulse, digital and analogue outputs • RS 485, RS232 serial and Ethernet interfaces • MID approved, accuracy class 1.0 • For use in Zone 1 hazardous areas
TwinSonic plus
The TwinSonic plus offers a two in one –redundant
ultrasonic gas meter for custody transfer
applications with an additional totally independent
measurement in the same meter
body for verification of the primary measurement.
This meter combines two measurements
in one meter body. The Q.Sonicplus
6-path (two single and four double reflection
paths) for the fiscal measurement and the
CheckSonic 2-path (two single reflection
paths) for the “check” measurement. Each
measurement has its own independent
series 6 signal processing unit (SPU) with
color graphic touch screen display
• Nominal diameters: 250 – 1400 mm
• Gas pressure up to 150 bar
• Gas temperature up to 85°C
• Q.Sonic plus 6-path for the fiscal
measurement combined with a
CheckSonic 2-path for verification
• Colour graphic screen with
7 touchsensitive sections
• Integrated flow computer
• Impulse, digital and analogue
outputs
• RS 485, RS232 serial and Ethernet
interfaces
• For use in Zone 1 hazardous areas
CheckSonic vx ultrasonic gas meter
CheckSonic vx is a multipath ultrasonic gas
flow meter utilizing the most robust acoustic
path configurations available to the market.
The 6 path configuration is a fully symmetrical
layout of two direct cross pairs X paths in
the same plane and two diametrical axial V
bounce diagnostics paths. This makes it the
ideal measuring device for many gas metering
tasks where official calibration is not
required.
A range of concepts is available for the various applications. The Q.Sonic plus achieves
maximum accuracy. The CheckSonic vx, on the other hand, is the robust gas meter for
measuring tasks in industry and for non-custody transfer applications.
• Nominal diameters: 80 – 1400 mm • Gas pressure up to 150 bar • Gas temperature up to 85°C • 6-path, direct and reflective technology (3 path optional) • Colour graphic screen with 7 touchsensitive sections • Integrated flow computer • Impulse, digital and analogue outputs • RS 485, RS232 serial and Ethernet interfaces • For use in Zone 1 hazardous areas
Industrial gas meters
Elster range of products and services
Calorific value measurement
Calorific value measurement With the gas chromatograph EnCal 3000 and the gas-lab Q1,
Elster-Instromet offers two top-quality calorific value measuring devices. The most up-to-date
components guarantee precise analysis results in the respective fields of application
EnCal 3000
The EnCal 3000 is a gas chromatograph
specially designed for fiscal measurements
of energy and other properties of natural
gas. This state-of-the art analyzer uses chromatography
components based on the latest
Micro Electro Mechanical Systems (MEMS)
and capillary columns. This results in highly
repeatable and highly accurate analysis
results. The compact analyzer contains the
analytical hardware, sample conditioning,
stream selection and all required electronics for standalone operation. The rugged, ATEX-approved design of the housing allows
the analyzer to be used in outdoor environments with ambient temperatures between
-20°C and +55°C. Communication with the EnCal 3000 can be established using the
TCP/IP connection or two redundant serial Modbus ports. The software package RGC
3000 is used to configure the EnCal 3000. The TCP/IP connection offers a multitude of
communication possibilities, such as networking capabilities, remote control and
even access over the internet. By using Modbus over TCP/IP, a variety of instruments
such as flow computers can be connected to the EnCal 3000.
• Repeatability on heating value < 0.005 % RSD • Accuracy on heating value < 0.1 % • Electronic pressure control • TCP / IP communication • C6+ within 3 minutes • C9+ within 5 minutes • Other applications: Biogas analysis, odorant detection, H2 S detection, hydrocarbon dew point calculation
EnCal 3000 Quad
For extended natural gas measurements we
can extend the EnCal with a slave unit and
thus expending the number of columns to a
maximum of four. In this way the analyzer is
able to measure more components in the
natural gas. Solution with measurements up
to dodecane are even possible. Also many
combinations of different measurements are
possible. One can think of combining heating
value determination with Odorization control
of the natural gas. Please contact your local
supplier and find out that your difficult application
is indeed an easy one for our Quad.
gas-lab Q1
The gas-lab Q1 is a gas quality analyzer for
generic natural gases. The device features
fast response, measures continuously and
does not use a flame. It allows online measurements
of the calorific value, Wobbe
index, standard density and CO2
concentration,
as well as other characteristic gas
parameters which are necessary for billing
and control purposes. The measurement
system is made up of two components: an
explosion-proof measuring unit and a control unit. The control unit can be installed up to 1000 m away from the measuring unit
and is used for control, evaluation and display purposes, as well as for official data
registration and communication via DSfG or Modbus interface.
• Fast, continuous measurement;
T90 < 30 seconds, or optionally
T90 < 10 seconds
• Especially suitable for control and
protection of gas turbines
• Low investment and maintenance
costs
• Accuracy: hs: ≤ 0.4 %, ρ : ≤ 0.8 %,
xCO2
: ≤ 0.2 mol %
Volume converters
Elster range of products and services
Volume converters
The EK series offer compact battery-operated electronic volume converters
suitable for use in Zone 1 hazardous areas. The units feature data
logging functions, for which manual or automated readout options are
available, using accessories.
EK220 volume converter
The EK220 with MID approval is a compact,
battery-operated, electronic PTZ volume
converter. The layout and contents of the
archives of the integrated data logger can
be configured. A second pressure sensor
may optionally be used to monitor the inlet
or the outlet pressure of a system as well as
the volume correction. For connection to a
SCADA system or for reading out data for billing
systems, the EK220 has a configurable
serial interface. Various communication protocols
for data communication round off the
volume corrector’s capacity range.
• MID approval
• Archives with flexible configuration
• Suitable for use in Zone 1
• Pressure ranges up to 80 bar
• 3 digital inputs (LF, status)
• 4 freely programmable
• Configurable serial interface
RS232/RS422/RS485
• Various communication protocols:
(IEC 62056-21, Modbus, IDOM, SMS)
• 2nd pressure sensor for monitoring
inlet or outlet pressure (option)
EK280 volume converter
The EK280 can be equipped with a GSM /
GPRS modem and a power supply unit and
thus covers the requirements for volume conversion,
data logging and remote data transfer
in a single device. In addition, the device
features other digital inputs and allows the
connection of a second pressure and/or
temperature sensor. Status signals and measurements
(e.g. door contact, SSV, inlet pressure,
etc.) of a gas measurement and control
system can thus be recorded and transferred to remote control or SCADA systems for monitoring purposes via a separate interface.
Therefore the EK280 supports the Modbus protocol in ASCII, RTU and TCP mode. The
use of DLMS/COSEM communication ensures secure data transfer using the very latest
encryption methods. The automated transfer of data by the device to a retrieval or
MDM system (PUSH mode) is another alternative.
• MID approval
• Archives with flexible configuration
• Suitable for use in Zone 0/1
• Pressure ranges up to 80 bar
• 6 digital inputs
(LF, HF, Absolute ENCODER, status)
• 4 digital outputs (LF, HF, status)
• Configurable serial interface
RS232/RS422/RS485
• Various communication protocols:
(IEC 62056-21, DLMS/COSEM,
Modbus, FTP, SMS)
• Software update in accordance with
Welmec 7.2
Options
• Integrated GSM/GPRS modem
(Zone 0/1)
• Integrated power supply unit (Zone 2)
• Second pressure and temperature sensor
Volume converters
Elster range of products and services
FE260 function extension unit
The FE260 function extension unit has three
basic tasks: the ex-barrier for the data interface
and the digital outputs, the intrinsically
safe power supply and the data communication
for a volume corrector from the EK series.
The modular concept of the unit allows the
use of a modem or, alternatively, an interface
board for data communication. An optical
interface may also optionally be used in
order to set the parameters or to read out the
volume corrector in the station, but outside
the hazardous area.
• ATEX approval as associated apparatus for Ex-Zone 1 • Ex-barrier for the data interface • Ex-barrier for the data outputs • Intrinsically safe power supply to the volume corrector • Optical interface (IEC 62056-21) • Communication module may be integrated (PSTN, GSM/GPRS) • Alternative interface module RS232 / RS485 or Ethernet (TCP/IP)
Flow computers
Elster range of products and services
Flow computers
Elster’s flow computers are intended for use in large-scale measuring
stations and used outside EX zone 2 environments.
enCore FC1
The FC1 flow computer with its technical
concept sets innovative standards as a basis
for flexible customer-orientated solutions. A
modular system design for both, hardware
and software, combined with a modern full
graphic touch screen display, makes a forward-looking,
next-generation flow computer
• Modular hardware architecture (one
interface board per stream)
• Partial software upgrade/update via
USB or TCP/IP
• Enhanced data logging functionality
• Calculations according to AGA/ISO/
API/GPA
• Ethernet: HTTP/MMS/Modbus/NTP
protocols
• USB front panel interface
• Free of charge: enSuite configuration
and maintenance tool
• Full graphic display, touch screen
• Configurable layout of user defined
displays
• Multiple language system (selectable
online)
• Optionally integrated EX barriers
• Low power consumption
Station controller
Station controller are often used in measuring stations in order to implement, in addition to the flow
computer, many different tasks in the fields of automation, monitoring and data communications
without much extra configuration effort.
enCore MC1
The enCore MC1 is a station controller for
universal monitoring, data logging and forwarding
of messages and measurements
in measuring and regulating stations.
• Modbus Gateway functionality
(RTU, ASCII, TCP, Slave, Master)
• Data logging
• Station consumption calculations
• Meter comparison
• Maximum and minimum values for
measurements and indexes
Data loggers
Elster range of products and services
Data loggers
Data loggers support the process of billing for commercial
and industrial customers.
DL210 data logger
The DL210 data logger is suitable for use in
small gas stations without volume converter.
The connection to Absolute ENCODER indexes
ensures safe and reproducible data logging.
Discrepancies between the mechanical
index in the gas meter and the electronic
index in the data logger are not possible.
Data relating to the recorded meter readings
and consumption values can be transmitted
remotely using the integrated GSM/GPRS
modem based on different available technologies.
• Data recording and transmission for the supply of gas and water • Absolute ENCODER interface or alternative pulse interface • Status input • GSM/GPRS modem with antenna integrated into the housing • Data transfer in PULL or PUSH mode • Various data protocols (IEC 62056-21, FTP, SMS) • Monthly, daily and measuring period archives • 230 V AC power supply unit (option)
DL230 data logger
The multi-channel data logger DL230 is used
to determine peak loads and load profiles for
gas meters with LF pulse outputs for commercial
and industrial customers. Two of the
four input channels can alternatively also be
connected to Absolute ENCODER indexes.
Inputs which do not record any consumption
information or original meter readings can
also be programmed as status inputs. This
makes simple monitoring functions possible,
such as the registration of station access or alarm signals from a volume conversion device. The integrated GSM/GPRS modem
can be powered by batteries or optional with an internal power supply unit. The use
of DLMS/COSEM communication ensures secure data transfer using the very latest
encryption methods. The automated transfer of data by the device to a retrieval or
MDM system (PUSH mode) is another alternative
• Multi-channel data logger • ATEX approval as associated apparatus for Ex Zone 0/1 • Four digital inputs; 2 of them for connecting to Absolute ENCODER indexes • Two freely programmable, sealable digital outputs • Integrated GSM/GPRS modem; antenna on housing • Data transfer in PULL or PUSH mode • Various data protocols (IEC 62056-21, DLMS/COSEM, FTP, SMS) • Station monitoring • Software update in accordance with Welmec 7.2 • 230 V AC power supply unit (option)
Integrated Metering Solutions
Elster range of products and services
Integrated Metering Solutions
All high-end gas metering out of one hand.
Integrated Metering Solutions
With us as an original equipment manufacturer,
the customer will benefit from the high
degree of integration, as all components are
designed, engineered and manufactured by
Elster-Instromet to maximize added value
once combined in one integrated system.
This leads to reduced uncertainty, higher reliability,
lower risk and reduced maintenance
costs. This means lower financial risk and
fairer billing of traded natural gas.
Besides a wide range of standard stations and
modules, Elster-Instromet also specializes
in providing customized solutions, meeting
customer specifications in the design and
manufacture, as well as providing project
management and after-sales support, such
as startup and commissioning. With its own
workshops for the production of the (skid
mounted) stations, a multi-discipline project and engineering organization supports the projects from conception until succesful
realization. A dedicated team of experienced, professional mechanical, electrical and
welding engineers, combined with gas flow experience and ultrasonic metering
know-how, provides a strong foundation for integrated solutions with customer focus,
based on lessons learned.
Elster-Instromet, as leading provider for metering excellence for years, meets the
need of the global gas industry. With a long proven track record and a large installed
base, Elster-Instromet is the worldwide leader for state-ofthe-art gas measurement.
Applications The systems cover a variety of custody transfer metering applications, calibration systems and industrial solutions over a wide range of pressures, flows and line sizes: • High-pressure transmission lines • Border metering stations • City gate and industrial stations • Local distribution stations • Metering for LNG plants • Powerplants • Underground stations • Bi-directional systems • Calibration systems • Biogas applications • Underground storage • Shale gas applications • Compressor stations
Integrated Metering Solutions
Elster range of products and services
ISS plus Supervisory Suite
The Elster-Instromet Supervisory Suite provides
a total solution for supervisory systems for
all your metering applications: stations from
a single stream up to 100 streams, control
systems for high-pressure calibration facilities
and remote metering applications where
stations are interrogated via a radio network
and data are concentrated into a central
pipeline monitoring system. The supervisory
system can consist of a single supervisory
computer or can be dual redundant. In the
latter case, two supervisory computers operate
in a hot stand-by configuration. For situations
where multiple operator terminals are re -
quired, a true redundant client server system
is available supporting a virtually unlimited
amount of operator terminals.
ISS plus is more than a SCADA or DCS package. ISS plus is developed specifically for gas /
liquid metering applications where accurate calculations, data processing, reporting
and advanced communication capabilities are of the utmost importance. Calculations
for use specifically in metering such as ISO6976, SGERG, AGA8, NX19, AGA10 and various
other thermodynamic properties are part of the ISS plus package.
With performance monitoring, your metering system is continuously validated. If
metering equipment has drifted and requires maintenance or recalibration, this will
be signalled. The performance monitoring features within ISS plus have been developed
in close cooperation with all product development specialists for products such
as the Q.Sonic ultrasonic meter, EnCal 3000 gas chromatograph and the range of
flow computers.
• Built-in trending for process analysis • Advanced alarm and event logging • E-mail or SMS generation on alarms or events • Validation/calibration system with database and control charts • Extensive protocol support: Modbus TCP/IP, Hart, OPC, XML, etc. • Integrated performance monitoring for Elster-Instromet ultrasonic meters
ISS plus control room with multi screens
Integrated Metering Solutions
Elster range of products and services
Calibration systems
The global involvement in gas calibration
systems and master meters, and the
achievement of primary standards make
Elster-Instromet a reputable partner and consultant
for metrological institutes, gas companies
and manufacturers. Most of the
known calibration facilities worldwide were
either built by Elster-Instromet, such as ‘pigsar’
in Germany, TCC in Canada, or the truckbased
mobile system for West East Pipeline
Project (WEPP) in China, or use Elster-Instromet’s
master meter technology, such as EuroLoop,
Westerbork and Bergum in the Netherlands
or Force Institute in Denmark. In addition,
Elster-Instromet operates more than 50 calibration
systems of various sizes and types,
as part of its own gas meter research, development
and production.
Whatever is needed, standard and customized solutions are available: • Master meters based on duo rotary or turbine, ultrasonic principle • Sonic nozzle systems for low and high pressure • Modular diaphragm gas meter calibration and test systems, • High-pressure calibration systems and stations • Low-pressure calibration systems for turbine and rotary gas meters • High-to-low-pressure closed-loop calibration solutions • Mobile calibration systems for low and high pressure
Mobile calibration system
Service
Elster range of products and services
Elster at your service
The right service when you need it.
Reliable from the start
For new stations, we offer you installation
and commissioning services to ensure that
your equipment and systems are installed,
tested and commissioned properly and
reach peak performance quickly and easily.
As the measurement results essentially form
the “cash register” of the company, we offer
periodic verification tests to ensure that the
metering equipment performance does not
deviate significantly from specified tolerances
and accuracy. If you need support for service-specific
questions, we have a ticket
based helpdesk system available. One of
the most cost-effective and efficient ways to
improve productivity and to maximize process
uptime is to establish a long-term service
contract which can include a combination
of individual services such as a helpdesk,
preventive maintenance, verification/validation,
remote support, (emergency) on-site
support, customer training, etc. within an agreed response time. Furthermore, a full range of product training courses is available
to customers world-wide. We offer in-house and on-site, targeted training courses
for our products which cover operation, commissioning and maintenance.
We truly are your local partner. Together with our joint-venture partners, we have
increased our global coverage. Our network of service centres and partners guarantees
short routes, quick response times and direct support. Qualified personnel in
the region and a professional coordination of service operations ensure customer satisfaction.
Installation services • Installation • Start-up and commissioning Support services • Helpdesk/hotline • Remote support • Training Corrective services • Emergency call-out • Workshop and on-site repairs Preventive services • Maintenance • Monitoring Value added services • Calibration & validation services • Upgrades • Extended warranty • Long-term service agreements
At www.elster-instromet.com you
will find regional and national,
as well as global contacts and
addresses for sales support and
services
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
